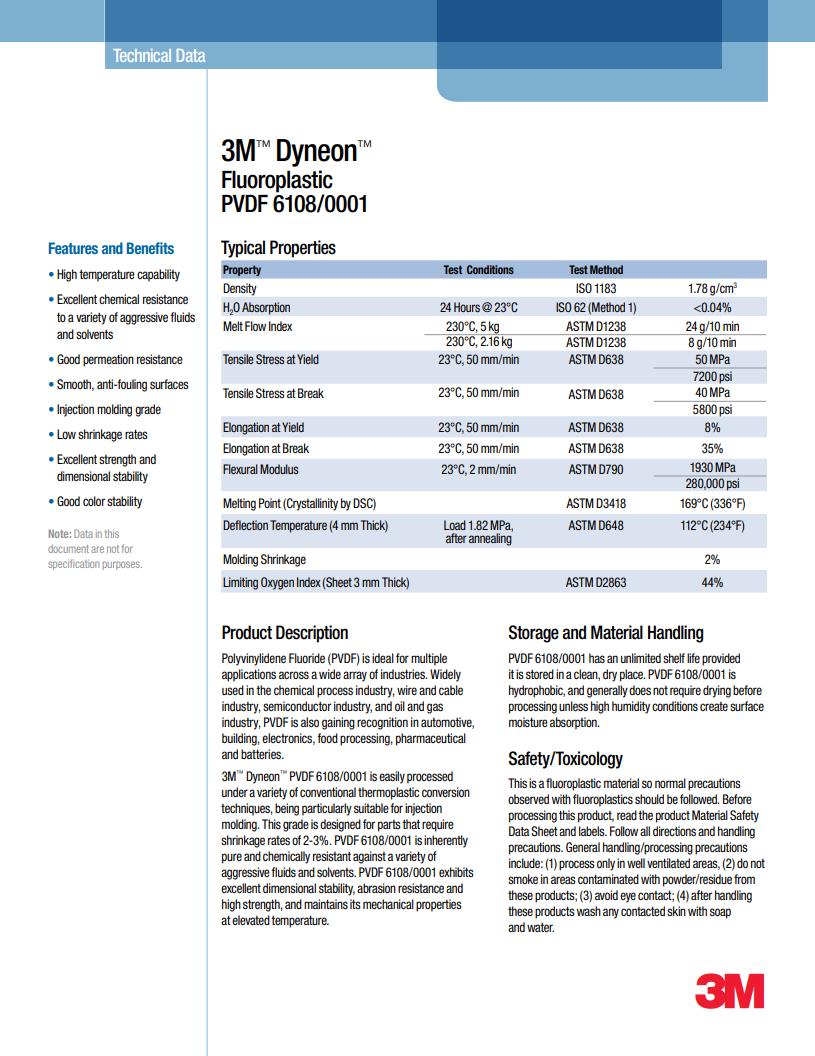

3M™ Dyneon™ Fluoroplastic PVDF 6108/0001
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
Polyvinylidene Fluoride (PVDF) is ideal for multiple applications across a wide array of industries. Widely used in the chemical process industry, wire and cable industry, semiconductor industry, and oil and gas industry, PVDF is also gaining recognition in automotive, building, electronics, food processing, pharmaceutical and batteries.
3M™ Dyneon™ PVDF 6108/0001 is easily processed under a variety of conventional thermoplastic conversion techniques, being particularly suitable for injection molding. This grade is designed for parts that require shrinkage rates of 2-3%. PVDF 6108/0001 is inherently pure and chemically resistant against a variety of aggressive fluids and solvents. PVDF 6108/0001 exhibits excellent dimensional stability, abrasion resistance and high strength, and maintains its mechanical properties at elevated temperature.
Features and Benefits
•High temperature capability
•Excellent chemical resistance to a variety of aggressive fluids and solvents
•Good permeation resistance
•Smooth, anti-fouling surfaces
•Injection molding grade
•Low shrinkage rates
•Excellent strength and dimensional stability
•Good color stability
材料特性：純度高、高強度、抗溶劑、良好的加工性能、良好的顏色穩定性、耐化學品良好、耐磨損良好、高耐熱、收縮性低、High Dimensional Stability
材料用途：電池、電氣/電子應用領域、電線電纜應用、建筑材料、汽車領域的應用、石油/天然氣用品
加工方法：注射成型
供貨地區：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度 | 1.78 | g/cm³ | ISO 1183 |
| 熔流率（熔體流動速率） | ASTM D1238 | ||
| 230℃/2.16 kg | 8.0 | g/10 min | |
| 230℃/5.0 kg | 24 | g/10 min | |
| 收縮率 - 流動 | 2.0 | % | |
| 吸水率(24 hr,23℃) | < 0.040 | % | ISO 62 |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度1 | ASTM D638 | ||
| 屈服,23℃ | 50.0 | MPa | |
| 斷裂,23℃ | 40.0 | MPa | |
| 伸長率1 | ASTM D638 | ||
| 屈服,23℃ | 8.0 | % | |
| 斷裂,23℃ | 35 | % | |
| 彎曲模量2(23℃) | 1930 | MPa | ASTM D790 |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 載荷下熱變形溫度(1.8 MPa,已退火,4.00 mm) | 112 | ℃ | ASTM D648 |
| 熔融峰值溫度 | 169 | ℃ | ASTM D3418 |
| 可燃性 | 額定值 | 單位制 | 測試方法 |
| 極限氧指數(3.00 mm) | 44 | % | ASTM D2863 |
| 備注 150 mm/min 22.0 mm/min |
|||
