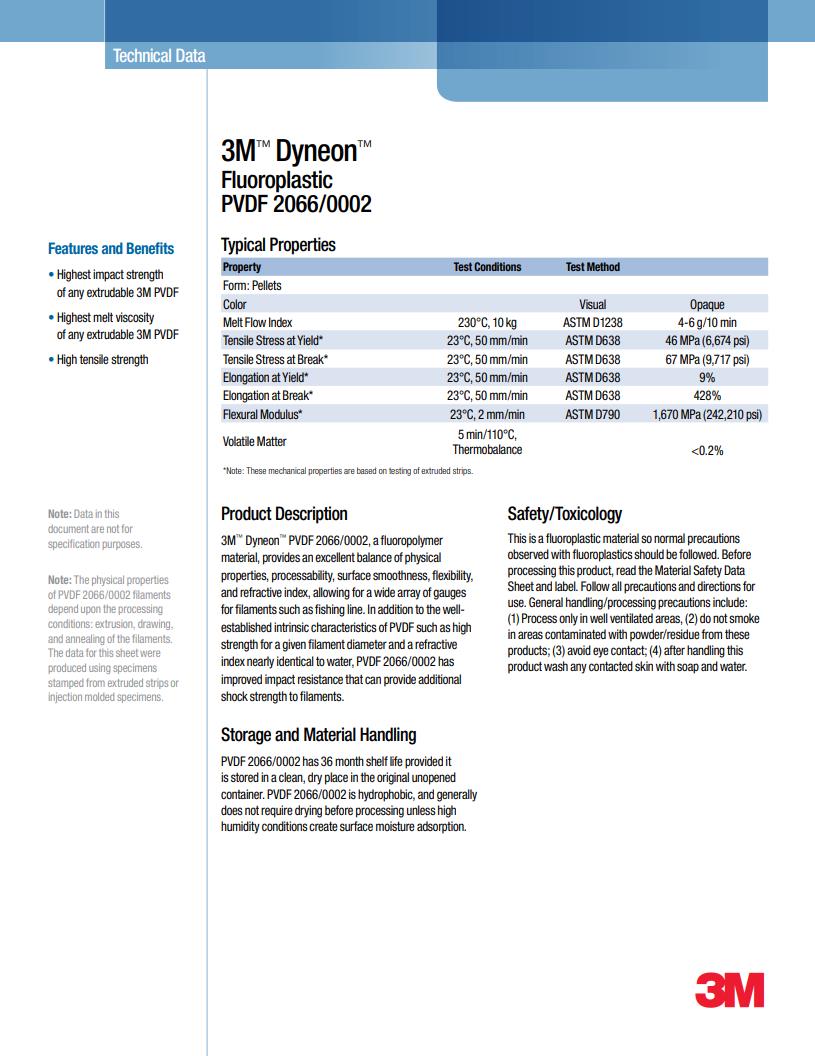

3M™ Dyneon™ Fluoroplastic PVDF 2066/0002
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
3M™ Dyneon™ PVDF 2066/0002, a fluoropolymer material, provides an excellent balance of physical properties, processability, surface smoothness, flexibility, and refractive index, allowing for a wide array of gauges for filaments such as fishing line. In addition to the well-established intrinsic characteristics of PVDF such as high strength for a given filament diameter and a refractive index nearly identical to water, PVDF 2066/0002 has improved impact resistance that can provide additional shock strength to filaments.
Features and Benefits
•Highest impact strength of any extrudable 3M PVDF
•Highest melt viscosity of any extrudable 3M PVDF
•High tensile strength
材料特性：高抗撞擊性、高拉伸強度、高強度、高粘度、良好的加工性能、良好的柔韌性
材料用途：細絲
加工方法：不透明粒子擠出
供貨地區(qū)：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 熔流率（熔體流動速率）(230℃/10.0kg) | 4.0 到 6.0 | g/10 min | ASTM D1238 |
| 揮發(fā)物-5 min/110℃,Thermobalance | < 0.20 | % | |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度1 | ASTM D638 | ||
| 屈服,23℃ | 46.0 | MPa | |
| 斷裂,23℃ | 67.0 | MPa | |
| 伸長率1 | ASTM D638 | ||
| 屈服,23℃ | 9.0 | % | |
| 斷裂,23℃ | 430 | % | |
| 彎曲模量2(23℃) | 1670 | MPa | ASTM D790 |
| 備注 150 mm/min 22.0 mm/min |
|||
