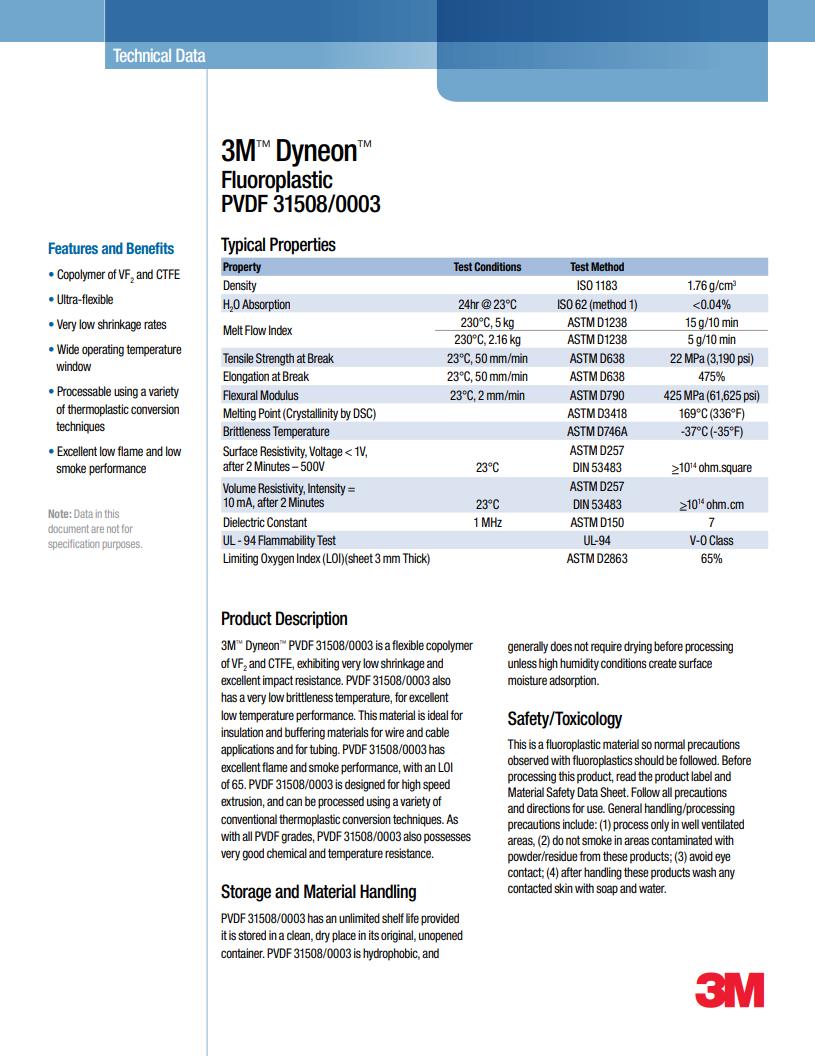

3M™ Dyneon™ Fluoroplastic PVDF 31508/0003
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
3M™ Dyneon™ PVDF 31508/0003 is a flexible copolymer of VF2 and CTFE, exhibiting very low shrinkage and excellent impact resistance. PVDF 31508/0003 also has a very low brittleness temperature, for excellent low temperature performance. This material is ideal for insulation and buffering materials for wire and cable applications and for tubing. PVDF 31508/0003 has excellent flame and smoke performance, with an LOI of 65. PVDF 31508/0003 is designed for high speed extrusion, and can be processed using a variety of conventional thermoplastic conversion techniques. As with all PVDF grades, PVDF 31508/0003 also possesses very good chemical and temperature resistance.
Features and Benefits
•Copolymer of VF 2 and CTFE
•Ultra-flexible
•Very low shrinkage rates
•Wide operating temperature window
•Processable using a variety of thermoplastic conversion techniques
•Excellent low flame and low smoke performance
材料特性：低煙度、高抗撞擊性、共聚物、耐低溫、耐化學品良好、耐熱高、收縮性低、阻燃性、High Flexibility
材料用途：電線電纜應用、管件、絕緣材料
加工方法：擠出
供貨地區：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度 | 1.76 | g/cm³ | ISO 1183 |
| 熔流率（熔體流動速率） | ASTM D1238 | ||
| 230℃/2.16 kg | 5.0 | g/10 min | |
| 230℃/5.0 kg | 15 | g/10 min | |
| 吸水率(24 hr,23℃) | < 0.040 | % | ISO 62 |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度1(斷裂,23℃) | 22.0 | MPa | ASTM D638 |
| 伸長率1(斷裂,23℃) | 480 | % | ASTM D638 |
| 彎曲模量2(23℃) | 425 | MPa | ASTM D790 |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 脆化溫度 | -37.0 | ℃ | ASTM D746A |
| 熔融峰值溫度 | 169 | ℃ | ASTM D3418 |
| 電氣性能 | 額定值 | 單位制 | 測試方法 |
| 表面電阻率3 | > 1.0E+14 | ohms | ASTM D257 |
| 體積電阻率4(23℃) | > 1.0E+14 | ohms·cm | ASTM D257 |
| 介電常數(1 MHz) | 7.00 | ASTM D150 | |
| 可燃性 | 額定值 | 單位制 | 測試方法 |
| UL 阻燃等級 | V-0 | UL 94 | |
| 極限氧指數(3.00 mm) | 65 | % | ASTM D2863 |
| 備注 150 mm/min 22.0 mm/min 3Voltage <1V, after 2 Minutes - 500V 4Intensity = 10 mA, after 2 Minutes |
|||
