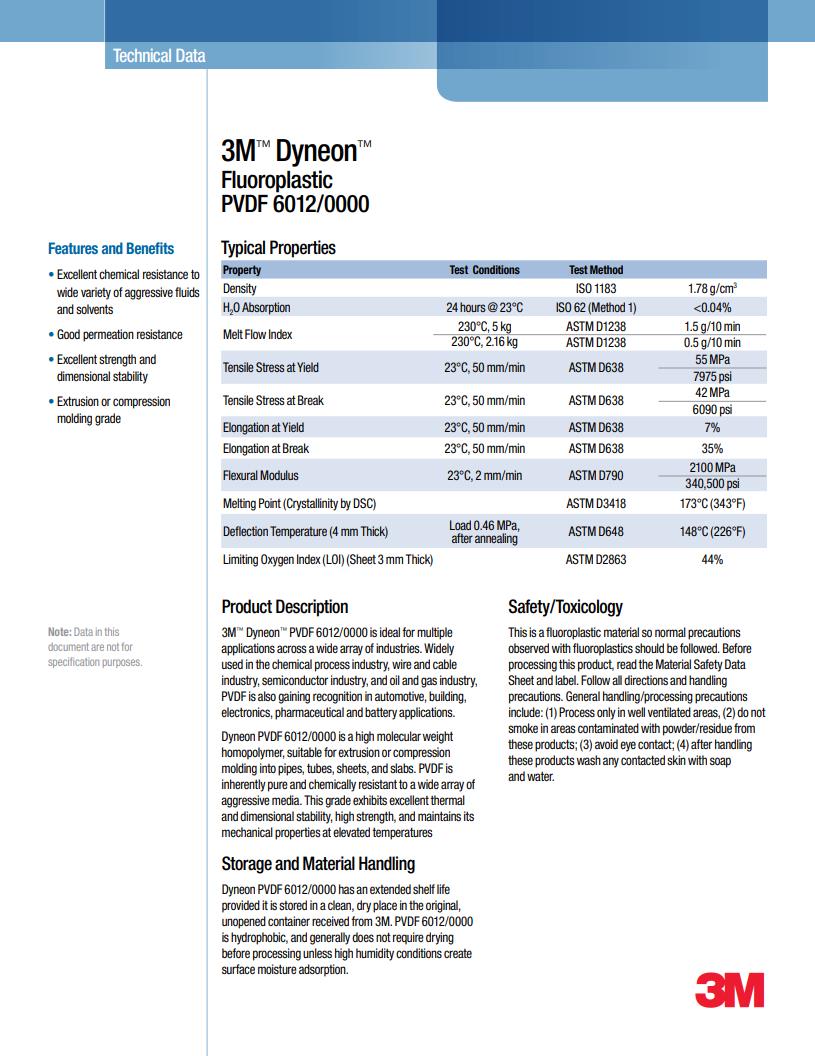

3M™ Dyneon™ Fluoroplastic PVDF 6012/0000
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
3M™ Dyneon™ PVDF 6012/0000 is ideal for multiple applications across a wide array of industries. Widely used in the chemical process industry, wire and cable industry, semiconductor industry, and oil and gas industry, PVDF is also gaining recognition in automotive, building, electronics, pharmaceutical and battery applications.
Dyneon PVDF 6012/0000 is a high molecular weight homopolymer, suitable for extrusion or compression molding into pipes, tubes, sheets, and slabs. PVDF is inherently pure and chemically resistant to a wide array of aggressive media. This grade exhibits excellent thermal and dimensional stability, high strength, and maintains its mechanical properties at elevated temperatures.
Features and Benefits
•Excellent chemical resistance to wide variety of aggressive fluids and solvents
•Good permeation resistance
•Excellent strength and dimensional stability
•Extrusion or compression molding grade
材料特性：純度高、高分子量、高強度、抗溶劑、均聚物、耐化學品良好、熱穩定良好、High Dimensional Stability
材料用途：電池、電氣/電子應用領域、電線電纜應用、管道系統、管件、建筑材料、片材、汽車領域的應用、石油/天然氣用品、壓縮平板
加工方法：擠出、壓縮模塑
供貨地區：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度 | 1.78 | g/cm³ | ISO 1183 |
| 熔流率（熔體流動速率） | ASTM D1238 | ||
| 230℃/2.16 kg | 0.50 | g/10 min | |
| 230℃/5.0 kg | 1.5 | g/10 min | |
| 吸水率(24 hr,23℃) | < 0.040 | % | ISO 62 |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度1 | ASTM D638 | ||
| 屈服,23℃ | 55.0 | MPa | |
| 斷裂,23℃ | 42.0 | MPa | |
| 伸長率1 | ASTM D638 | ||
| 屈服,23℃ | 7.0 | % | |
| 斷裂,23℃ | 35 | % | |
| 彎曲模量2(23℃) | 2100 | MPa | ASTM D790 |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 載荷下熱變形溫度 | ASTM D648 | ||
| 0.45 MPa,已退火,4.00 mm | 148 | ℃ | |
| -- | -- | -- | |
| 熔融峰值溫度 | 173 | ℃ | ASTM D3418 |
| 可燃性 | 額定值 | 單位制 | 測試方法 |
| UL 阻燃等級 | V-0 | UL 94 | |
| 極限氧指數(3.00 mm) | 44 | % | ASTM D2863 |
| 備注 150 mm/min 22.0 mm/min |
|||
