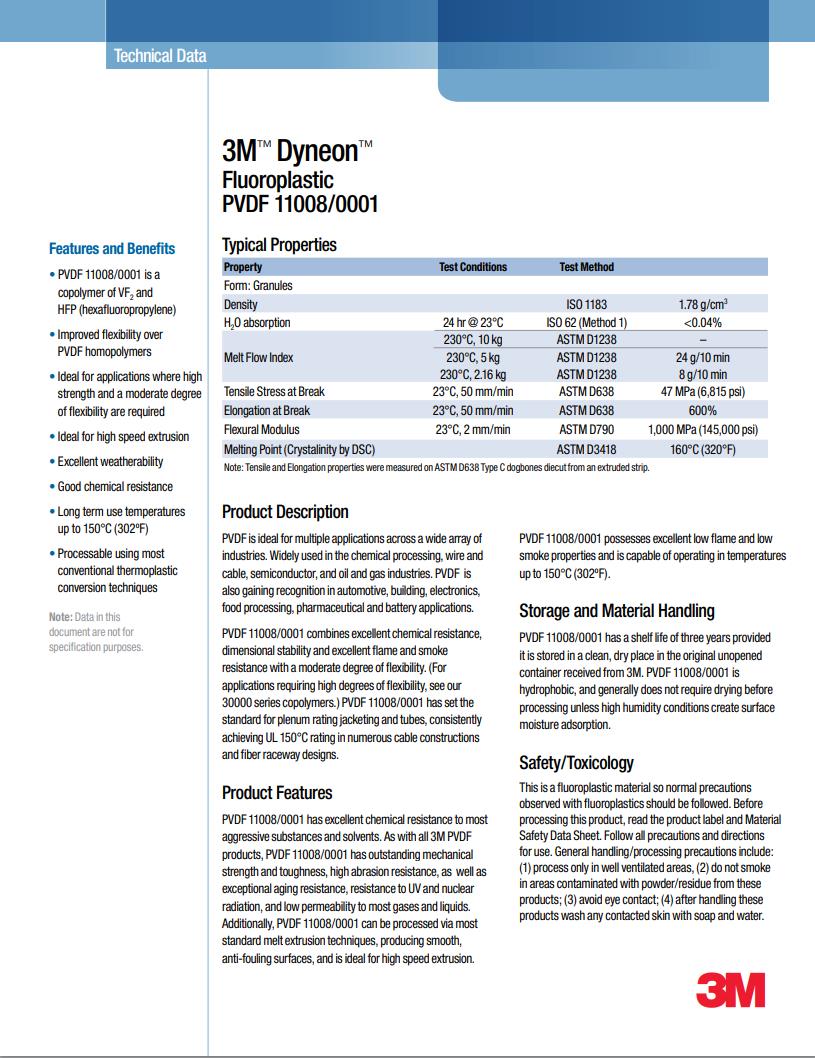

3M™ Dyneon™ Fluoroplastic PVDF 11008/0001
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
PVDF is ideal for multiple applications across a wide array of industries. Widely used in the chemical processing, wire and cable, semiconductor, and oil and gas industries. PVDF is also gaining recognition in automotive, building, electronics, food processing, pharmaceutical and battery applications.
PVDF 11008/0001 combines excellent chemical resistance, dimensional stability and excellent flame and smoke resistance with a moderate degree of flexibility. (For applications requiring high degrees of flexibility, see our 30000 series copolymers.) PVDF 11008/0001 has set the standard for plenum rating jacketing and tubes, consistently achieving UL 150℃ rating in numerous cable constructions and fiber raceway designs.
Features and Benefits
•PVDF 11008/0001 is a copolymer of VF 2 and HFP (hexafluoropropylene)
•Improved flexibility over PVDF homopolymers
•Ideal for applications where high strength and a moderate degree of flexibility are required
•Ideal for high speed extrusion
•Excellent weatherability
•Good chemical resistance
•Long term use temperatures up to 150℃ (302℉)
•Processable using most conventional thermoplastic conversion techniques
材料特性：低透氣性、低煙度、低液體滲透性、高強度、高韌性、共聚物、抗溶劑、良好的柔韌性、耐候性良好、耐化學品良好、耐磨損良好、耐紫外光性能良好、阻燃、High Dimensional Stability
材料用途：電池、電氣/電子應用領域、電線電纜應用、非特定食品應用、建筑材料、汽車領域的應用、石油/天然氣用品、天花板隔層電纜護套材料
加工方法：顆粒擠出
供貨地區：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度 | 1.78 | g/cm³ | ISO 1183 |
| 熔流率（熔體流動速率） | ASTM D1238 | ||
| 230℃/2.16 kg | 8 | g/10 min | |
| 230℃/5.0 kg | 24 | g/10 min | |
| 吸水率(24 hr,23℃) | < 0.040 | % | ISO 62 |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度1(斷裂,23℃) | 47 | MPa | ASTM D638 |
| 伸長率1(斷裂,23℃) | 600 | % | ASTM D638 |
| 彎曲模量2(23℃) | 1000 | MPa | ASTM D790 |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 熔融峰值溫度 | 160 | ℃ | ASTM D3418 |
| 備注 150 mm/min 22.0 mm/min |
|||
