Teflon® FEP CJ 95
聚全氟乙烯-丙烯樹脂
The Chemours Company
產品說明:
For inventory control purposes product name may be followed by an X.
Products labeled FEP CJ 95 and FEP CJ 95 X are equivalent and all information in this document is applicable to both.
Typical Application
Insulation and jacket for Wire and Cable, in applications demanding a high degree of stress crack resistance. Tubes and piping for general and chemical process industry.
Description
Teflon ™ FEP CJ 95 is a melt-processible copolymer of tetrafluoroethylene and hexafluoropropylene, without additives, that meets the requirements of ASTM D 2116 Type I.
It offers the excellent combination of properties characteristic of Teflon ® fluoropolymer resins: non-ageing characteristics, chemical inertness, exceptional dielectric properties, low flammability, heat resistance, toughness and flexibility, low coefficient of friction, non-stick characteristics, negligible moisture absorption and excellent weather resistance. As an intermediate molecular weight resin Teflon ® FEP CJ 95 offers higher processing speeds than many FEP grades with similar high level of stress crack resistance.
Stress crack resistance is an important element in establishing end-use performance. Extensive testing of wire and cable constructions is required for definitive performance evaluation. Experience shows that the MIT folding endurance or flex life test, performed on a thin film of resin, has established a good correlation with extensive cable testing. The higher the MIT flex life, the higher the stress-crack resistance of the resin. MIT test results should be viewed as a guide to comparative performance of the various grades of resin. We recommend that for applications involving repeated thermal and flex cycling, specific tests on the final cable always should be undertaken. See also DuPont's bulletin "Grade selector for Wire and Cable applications".
供貨地區：北美洲、拉丁美洲、歐洲、亞太地區
黃卡號碼：E54681-557110
材料特性：低摩擦系數、低吸濕性、高 ESCR（抗應力開裂）、良好的柔韌性、耐候性良好、耐化學品良好、耐熱高、韌性良好、食品接觸的合規性
材料用途：電纜護套、電線電纜應用、絕緣材料
外觀形式：粒子
加工方法：吹塑成型、擠出、壓縮模塑、注射成型
物料性能：
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度/比重 | 2.13 | g/cm³ | ASTM D792,ISO 1183 |
| 熔流率（熔體流動速率）(372°C/5.0 kg) | 5.0 | g/10 min | ASTM D2116,ISO 12086 |
| 吸水率(24 hr) | < 0.010 | % | ASTM D570 |
| 硬度 | 額定值 | 單位制 | 測試方法 |
| 肖氏硬度(邵氏 D) | 56 | ASTM D2240,ISO 868 | |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度(屈服,23°C) | 28.0 | MPa | ASTM D638,ISO 12086 |
| 伸長率(斷裂,23°C) | 330 | % | ASTM D638,ISO 12086 |
| 沖擊性能 | 額定值 | 單位制 | 測試方法 |
| 懸壁梁缺口沖擊強度(23°C) | 無斷裂 | ASTM D256,ISO 180 | |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 連續使用溫度1 | 205 | °C | |
| 熔融溫度 | 260 | °C | ASTM D4591,ASTM D3418 |
| 電氣性能 | 額定值 | 單位制 | 測試方法 |
| 介電強度 | |||
| 0.250 mm,方法A（短時間） | > 95 | kV/mm | ASTM D149 |
| 0.250 mm | > 95 | kV/mm | IEC 60243-1 |
| 介電常數 | ASTM D150,IEC 60250 | ||
| 1 kHz | 2.03 | ||
| 1.00 GHz | 2.03 | ||
| 耗散因數 | ASTM D150,IEC 60250 | ||
| 1 kHz | 5.0E-5 | ||
| 1.00 GHz | 8.0E-4 | ||
| 可燃性 | 額定值 | 單位制 | 測試方法 |
| UL 阻燃等級2 | V-0 | UL 94 | |
| 極限氧指數 | > 95 | % | ASTM D2863,ISO 4589-2 |
| 補充信息 | 額定值 | 單位制 | 測試方法 |
| Critical Shear Rate(372°C) | 20.0 | sec^-1 | 內部方法 |
| Guide DDR Range | |||
| for cable extrusion | 20.0 到 120 | ||
| for tubing extrusion | 3.00 到 8.00 | ||
| MIT Folding Endurance - film(200.0 µm) | 4.0E+4 | Cycles | ASTM D2176 |
| 備注 1The continuous service temperature is based on accelerated heat-aging tests,and represents the temperature at which tensile strength and ultimate elongation retains 50% of the original values,after 20 000 h thermal aging When considering the use of Teflon ® FEP at elevated temperatures especially in combination with mechanical,electrical or chemical exposure,preliminary testing should be done to verify suitability. 2- These results are based on laboratory tests,under controlled conditions,and do not reflect performance under actual fire conditions. - Current rating is a typical theoretical value |
|||

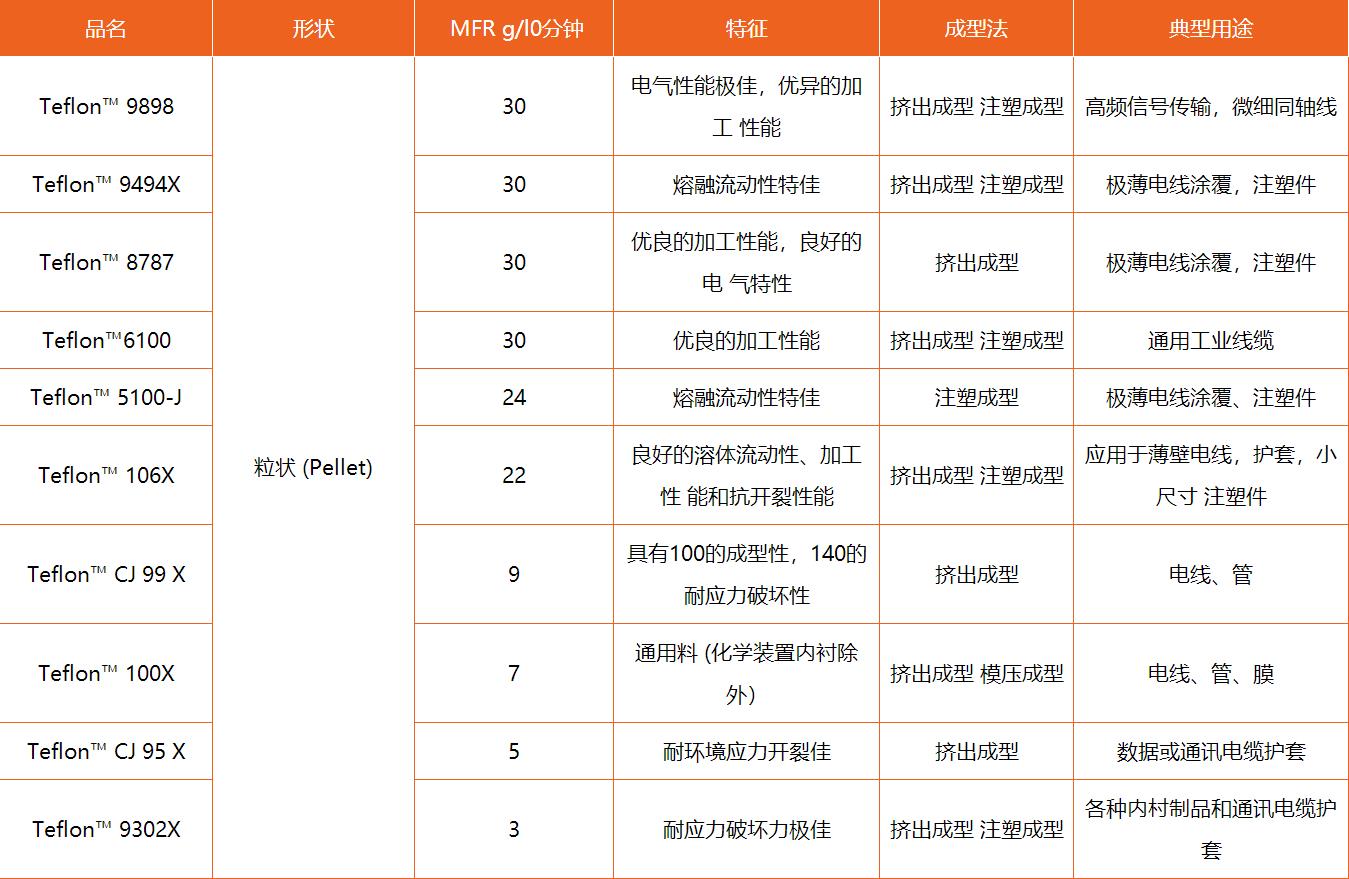

鐵氟龍™ FEP 聚全氟乙丙烯
連續最高使用溫度：200℃
極限氧指數（LOI）：95%
﹡Teflon™FEP為四氟乙烯與六氟丙烯的共聚合產物，是一種可以熔融擠出成型的樹脂，因其優越的加工性，使得Teflon™的用途增加，連續最高使用溫度為200°C。
﹡成型法與PFA相同，使用熔融擠出成型、傳遞成型、模壓成型等方法。
﹡Teflon™FEP為四氟乙烯與六氟丙烯的共聚合產物，是一種可以熔融擠出成型的樹脂，連續最高使用溫度為200°C。
﹡成型法與PFA相同，使用熔融擠出成型、傳遞成型、模壓成型等方法。
﹡與PTFE、PFA具有相似的耐化學藥品性、電氣特性。主要使用于電線絕緣/護套或管材擠出。Teflon™FEP為半透明顆粒料。
﹡FEP加工時，所有與其熔體接觸的部件都必須采用耐腐蝕性材料如鎳基合金等。
