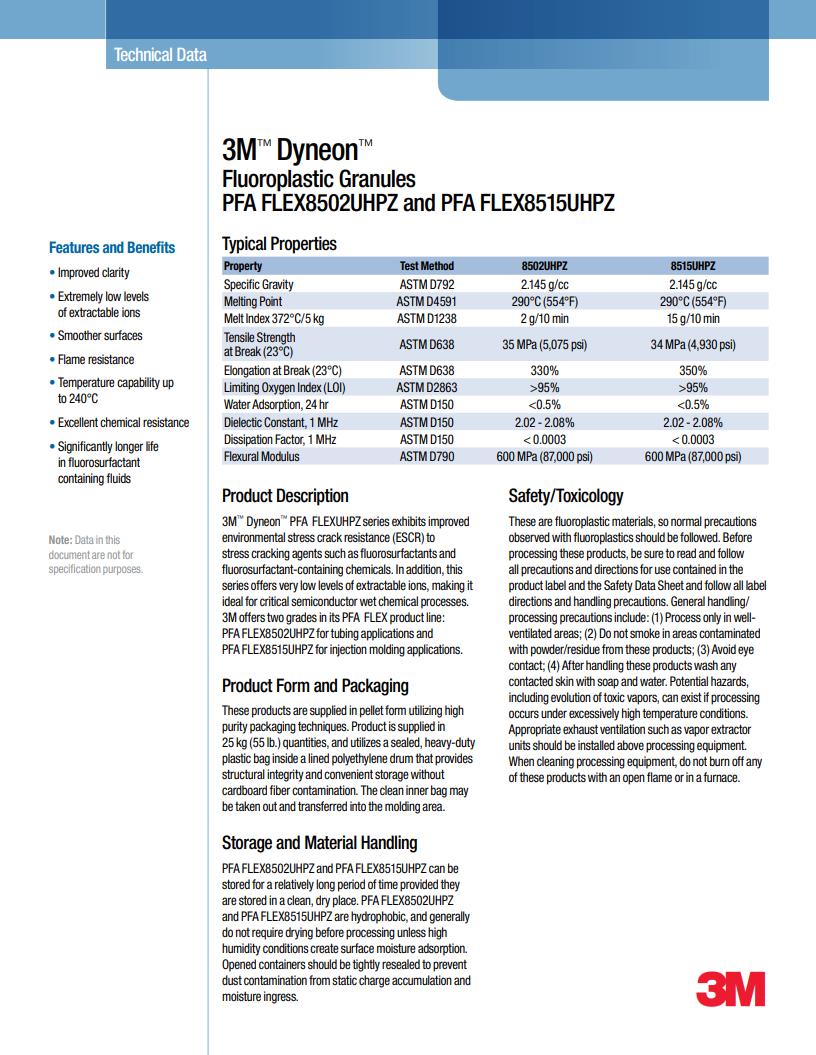

3M™ Dyneon™ Fluoroplastic PFA FLEX8502UHPZ
Generic Name: 全氟烷氧基 (PFA) - 提供方: 3M Advanced Materials Division
3M™ Dyneon™ PFA FLEXUHPZ series exhibits improved environmental stress crack resistance (ESCR) to stress cracking agents such as fluorosurfactants and fluorosurfactant-containing chemicals. In addition, this series offers very low levels of extractable ions, making it ideal for critical semiconductor wet chemical processes. 3M offers two grades in its PFA FLEX product line: PFA FLEX8502UHPZ for tubing applications and PFA FLEX8515UHPZ for injection molding applications.
Features and Benefits
•Improved clarity
•Extremely low levels of extractable ions
•Smoother surfaces
•Flame resistance
•Temperature capability up to 240℃
•Excellent chemical resistance
•Significantly longer life in fluorosurfactant containing fluids
材料特性：低萃取物、耐化學品良好、阻燃性
材料用途：管件
外觀加工：顆粒
材料產地：北美洲、歐洲
| 物理性能 | 額定值 | 單位制 | 測試方法 |
| 密度/比重 | 2.15 | g/cm³ | ASTM D792 |
| 熔流率（熔體流動速率）(372℃/5.0 kg) | 2.0 | g/10 min | ASTM D1238 |
| 吸水率(24hr) | < 0.50 | % | ASTM D570 |
| 機械性能 | 額定值 | 單位制 | 測試方法 |
| 抗張強度(斷裂,23℃) | 35.0 | MPa | ASTM D638 |
| 伸長率(斷裂,23℃) | 330 | % | ASTM D638 |
| 彎曲模量 | 600 | MPa | ASTM D790 |
| 熱性能 | 額定值 | 單位制 | 測試方法 |
| 熔融溫度 | 290 | ℃ | ASTM D4591 |
| 電氣性能 | 額定值 | 單位制 | 測試方法 |
| 介電常數(1 MHz) | 2.02 到 2.08 | ASTM D150 | |
| 耗散因數(1MHz) | < 3.0E-4 | ASTM D150 | |
| 可燃性 | 額定值 | 單位制 | 測試方法 |
| 極限氧指數 | > 95 | % | ASTM D2863 |
