Ultramid® C 216 V40 BLACK Z
聚酰胺6(尼龍6)PA6-GF40
德國巴斯夫-BASF Corporation
產品說明:
Ultramid® C 216 V40 Black Z is a polyamide 6, reinforced with 40% of glass fibre, for injection moulding. This grade has good mechanical properties and offering an excellent combination between thermal and mechanical properties.
增強材料:玻璃纖維40%增強
含添加劑:潤滑劑
材料特性:高剛性,良好的流動性,脫模性能良好
材料用途:汽車領域的應用
加工方法:黑色和自然色粒子注射成型
供貨地區:北美洲、非洲和中東、亞太地區
中國代理:蘇州希普能工程塑料

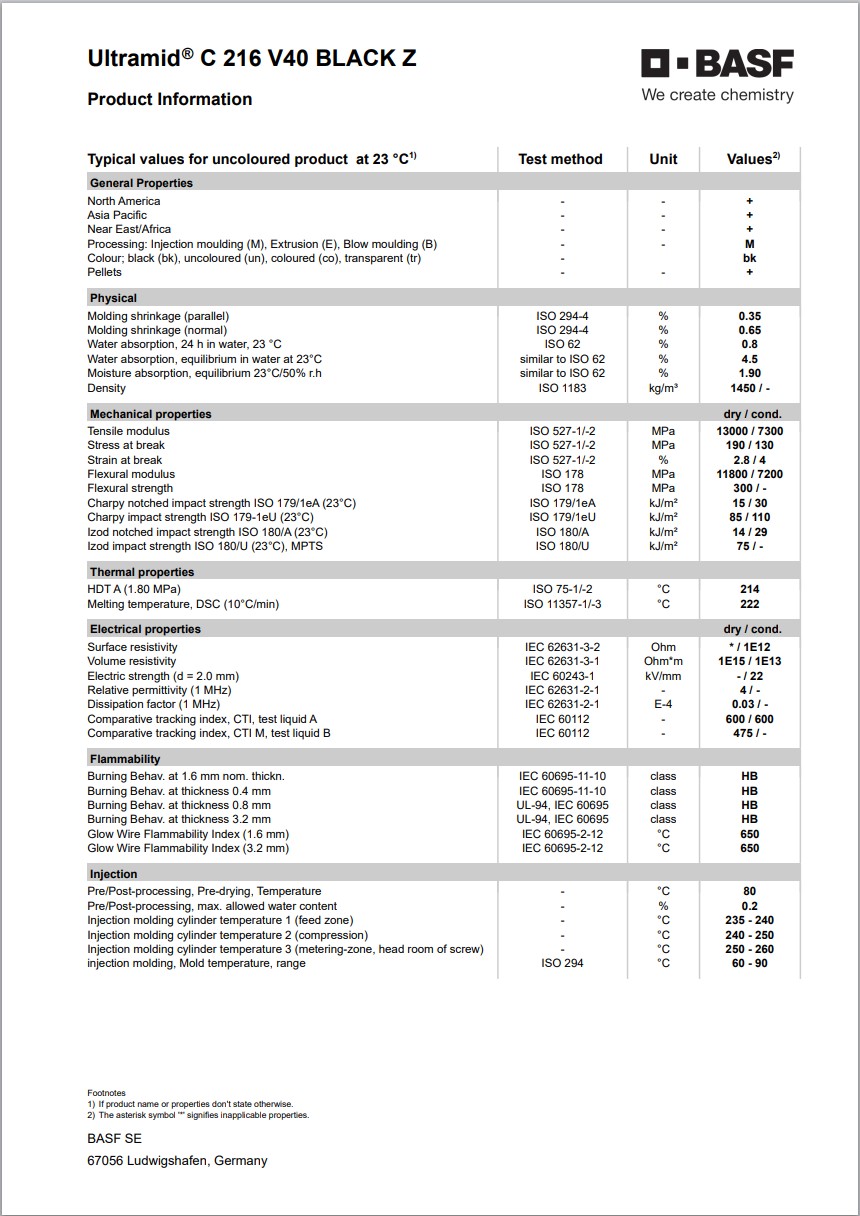

Ultramid® C 216 V40 BLACK Z 巴斯夫中文加工參數表
物理性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
密度 | 1.45 | -- | g/cm³ | ISO 1183 |
收縮率 | ISO 294-4 | |||
垂直 | 0.65 | -- | % | |
流動 | 0.35 | -- | % | |
吸水率 | ISO 62 | |||
24 hr,23℃ | 0.80 | -- | % | |
飽和,23℃ | 4.5 | -- | % | |
平衡,23℃,50% RH | 1.9 | -- | % | |
機械性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
拉伸模量 | 13000 | 7300 | MPa | ISO 527-1 |
拉伸應力(斷裂) | 190 | 130 | MPa | ISO 527-2 |
拉伸應變(斷裂) | 2.8 | 4.0 | % | ISO 527-2 |
彎曲模量 | 11800 | 7200 | MPa | ISO 178 |
彎曲應力 | 300 | -- | MPa | ISO 178 |
沖擊性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
簡支梁缺口沖擊強度(23℃) | 15 | 30 | kJ/m² | ISO 179/1eA |
簡支梁無缺口沖擊強度(23℃) | 85 | 110 | kJ/m² | ISO 179/1eU |
懸壁梁缺口沖擊強度(23℃) | 14 | 29 | kJ/m² | ISO 180/A |
無缺口伊佐德沖擊強度(23℃) | 75 | -- | kJ/m² | ISO 180/1U |
熱性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
載荷下熱變形溫度(1.8 MPa,未退火) | 214 | -- | ℃ | ISO 75-2/A |
熔融溫度 | 222 | -- | ℃ | ISO 11357-3 |
電氣性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
表面電阻率 | -- | 1.0E+12 | ohms | IEC 62631-3-2 |
體積電阻率 | 1.0E+15 | 1.0E+13 | ohms·m | IEC 62631-3-1 |
介電強度(2.00mm) | -- | 22 | kV/mm | IEC 60243-1 |
相對電容率(1MHz) | 4.00 | -- | IEC 62631-2-1 | |
耗散因數(1MHz) | 0.030 | -- | IEC 62631-2-1 | |
漏電起痕指數 | IEC 60112 | |||
解決方案 A | 600 | 600 | V | |
解決方案 B | 475 | -- | V | |
可燃性 | 干燥 | 調節后的 | 單位制 | 測試方法 |
UL 阻燃等級 | ||||
0.8 mm | HB | -- | UL94,IEC 60695-11-10,-20 | |
3.2 mm | HB | -- | UL94,IEC 60695-11-10,-20 | |
0.40 mm | HB | -- | IEC 60695-11-10,-20 | |
1.6 mm | HB | -- | IEC 60695-11-10,-20 | |
灼熱絲易燃指數 | IEC 60695-2-12 | |||
1.6 mm | 650 | -- | ℃ | |
3.2 mm | 650 | -- | ℃ | |
注射 | 干燥 | 單位制 | ||
干燥溫度 | 80 | ℃ | ||
建議的最大水分含量 | 0.20 | % | ||
料筒后部溫度 | 235 到 240 | ℃ | ||
料筒中部溫度 | 240 到 250 | ℃ | ||
料筒前部溫度 | 250 到 260 | ℃ | ||
模具溫度 | 60 到 90 | ℃ | ||
注射說明 The material is supplied in airtight bags,ready for use. In case that the virgin material has absorbed moisture,it must be dried with a dehumidified air drying equipment,dew point mini -20℃. Recommended time 2-4h Injection Advice: For reinforced polyamides,BASF SE recommends the use of steel with a high content of carbon,and purified for polishing,to avoid or limit the abrasion. For example: X38CrMoV5-1 (EN Norm)-1.2367/1.2343 (DIN Norm) or X160CrMoV12 (EN Norm)-1.2601/1.2379 (DIN Norm). In the case of high requirements on surface quality a mould temperature of up to 120℃ can be considered. The processing parameters like processing temperatures are a recommendation and can be adjusted in function of injection machine size,part geometry/design |
