Ultramid® B 50H1 NATURAL L
聚酰胺66/6共聚物（尼龍66/6）PA66/6 FR(30)
德國巴斯夫-BASF Corporation
產品說明:
Ultramid® B 50H1 Natural L is an unreinforced copolyamide 6.6/6 based on a non-phosphorous and non-halogenated flame retardant system, heat stabilized, for injection moulding. This flame retardant grade, UL94 V0 at 0.4mm, offers excellent filling qualities together with good stiffness. European Railways Certifications - EN 45545-2 HL2; European Railways Certifications - EN 45545-2 HL3

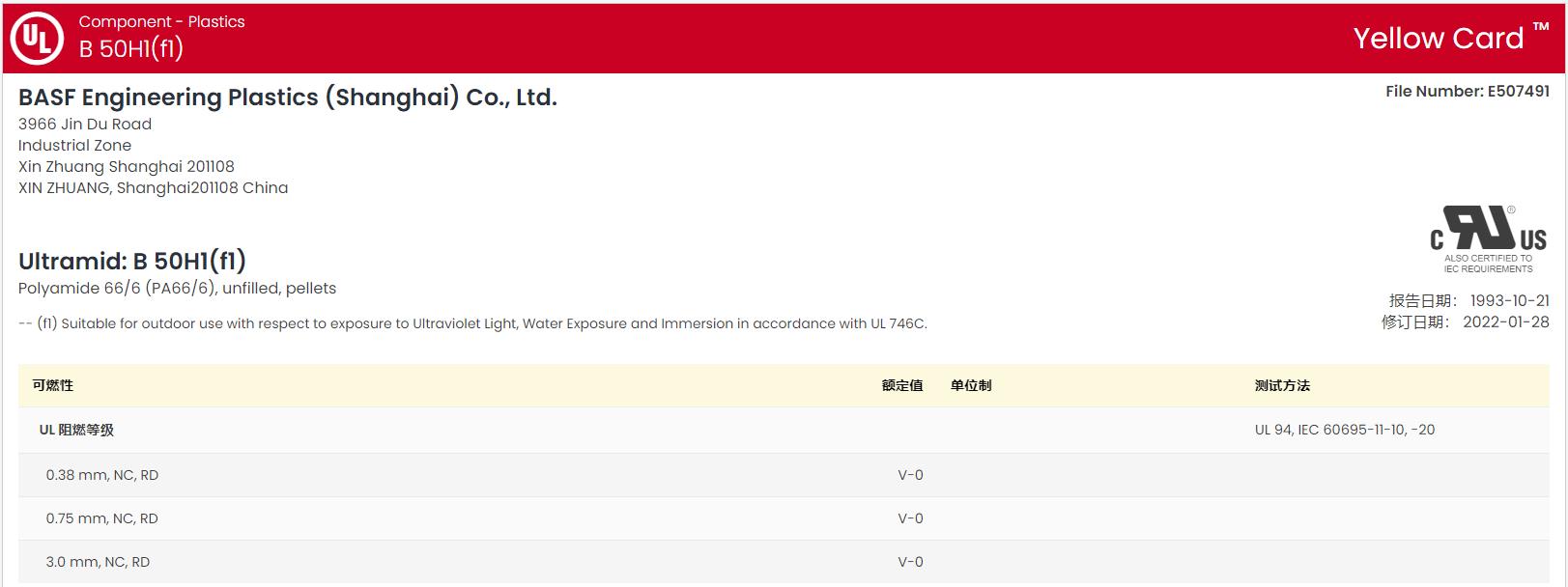

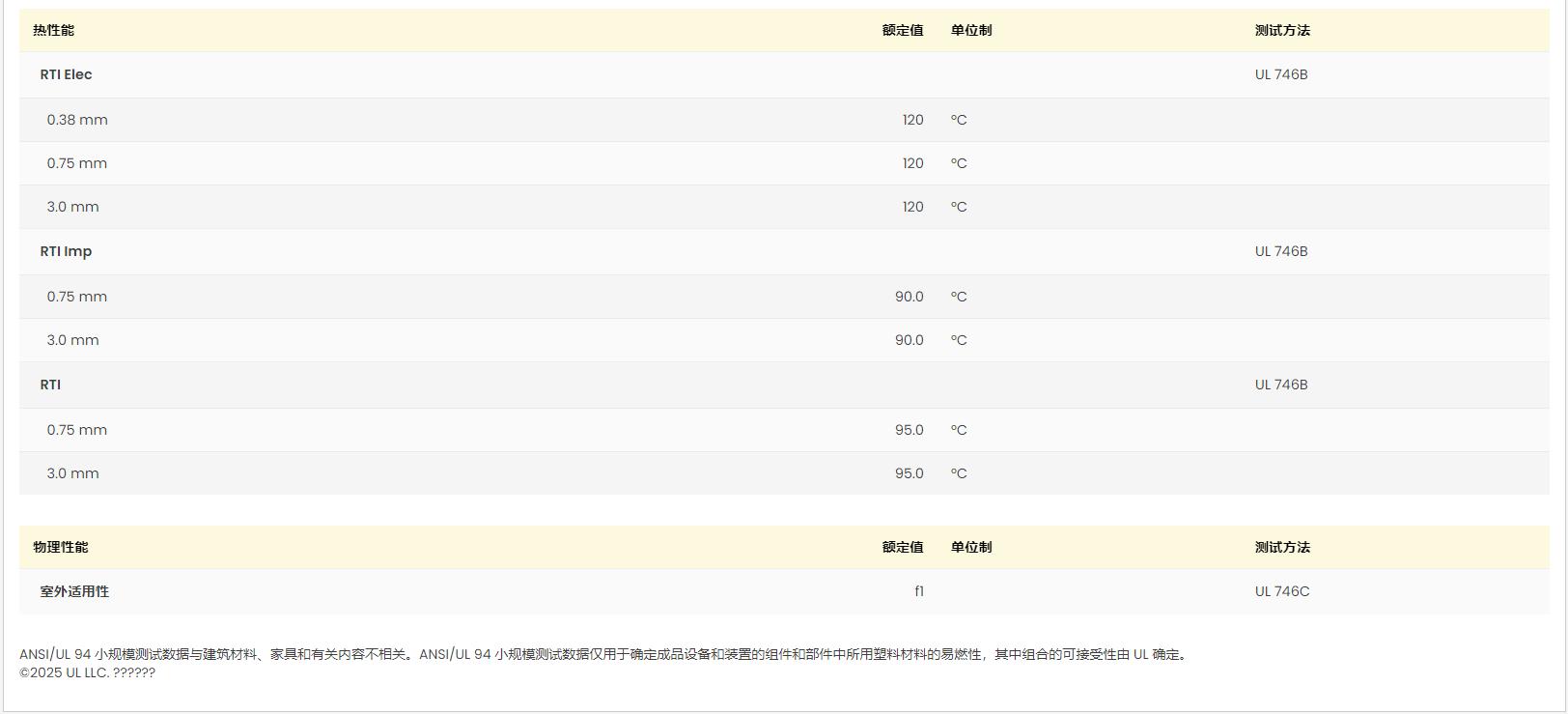

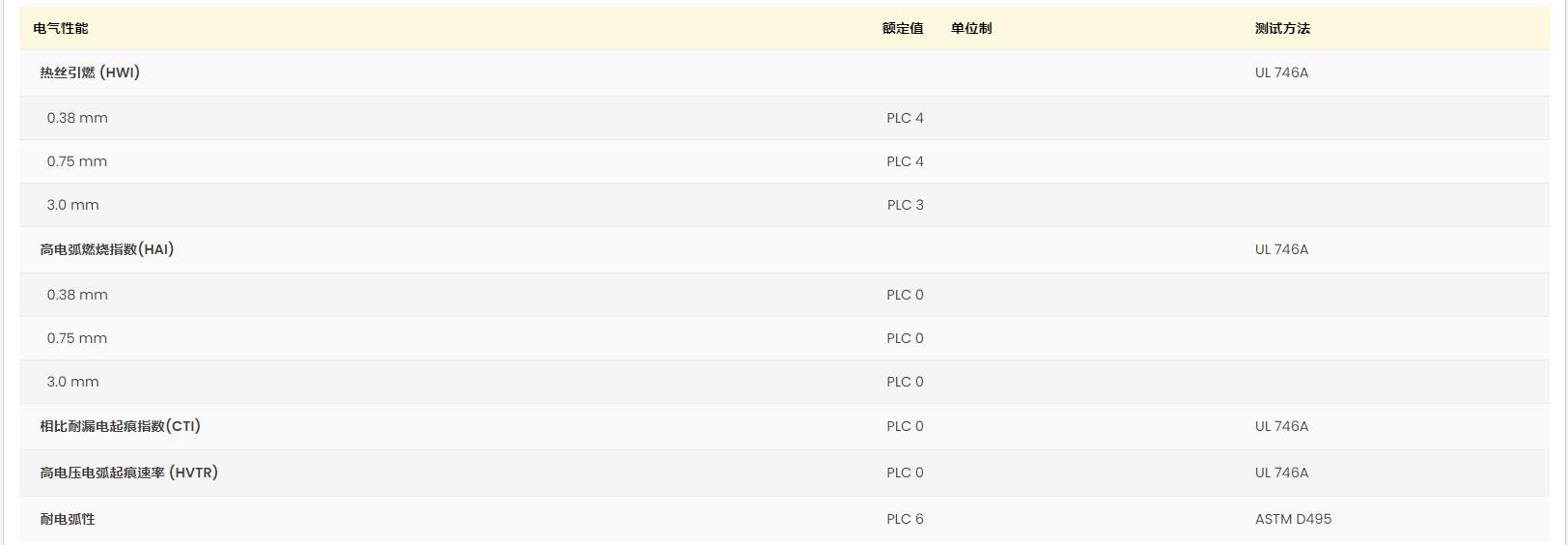

黃卡號碼：E507491-104288143、E507491-104288144
含添加劑：熱穩定劑、阻燃劑
材料特性：良好剛性、磷含量低（到無）、脫模性能良好、無鹵阻燃V0
材料用途：電氣/電子應用領域、連接器
加工方法：黑色和本色粒子注射成型
供貨地區：北美洲、非洲和中東、拉丁美洲、亞太地區
中國代理：蘇州希普能工程塑料
Ultramid® B 50H1 NATURAL L 加工參數表
| 物理性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| 密度 | 1.16 | -- | g/cm³ | ISO 1183 |
| 收縮率 | ISO 294-4 | |||
| 垂直 | 0.90 | -- | % | |
| 流動 | 1.1 | -- | % | |
| 吸水率 | ISO 62 | |||
| 24 hr,23℃ | 1.1 | -- | % | |
| 平衡,23℃,50% RH | 3.1 | -- | % | |
| 室外適用性 | f1 | -- | UL 746C | |
| 機械性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| 拉伸模量 | 3750 | 2200 | MPa | ISO 527-1 |
| 抗張強度 | ||||
| 屈服 | 85.0 | -- | MPa | ASTM D638 |
| 屈服 | 80.0 | 40.0 | MPa | ISO 527-2 |
| 斷裂 | 70.0 | 40.0 | MPa | ISO 527-2 |
| 拉伸應變 | ||||
| 屈服 | 4.0 | 5.0 | % | ISO 527-2 |
| 斷裂 | 15 | -- | % | ASTM D638 |
| 斷裂 | 12 | 100 | % | ISO 527-2 |
| 彎曲模量 | ||||
| -- | 3800 | -- | MPa | ASTM D790 |
| -- | 3700 | 1100 | MPa | ISO 178 |
| 彎曲強度 | ||||
| -- | 125 | -- | MPa | ASTM D790 |
| -- | 130 | 40.0 | MPa | ISO 178 |
| 沖擊性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| 簡支梁缺口沖擊強度 | ISO 179/1eA | |||
| -30℃ | 3.0 | -- | kJ/m² | |
| 23℃ | 3.5 | 5.0 | kJ/m² | |
| 簡支梁無缺口沖擊強度 | ISO 179/1eU | |||
| -30℃ | 80 | -- | kJ/m² | |
| 23℃ | 70kJ/m² | 無斷裂 | ||
| 懸壁梁缺口沖擊強度 | ||||
| 23℃ | 50 | -- | J/m | ASTM D256 |
| 23℃ | 5.0 | 6.5 | kJ/m² | ISO 180/A |
| 熱性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| 載荷下熱變形溫度(1.8 MPa,未退火) | 85.0 | -- | ℃ | ASTM D648,ISO 75-2/A |
| 熔融溫度 | 242 | -- | ℃ | ISO 11357-3 |
| 電氣性能 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| 表面電阻率 | -- | 1.0E+13 | ohms | IEC 62631-3-2 |
| 體積電阻率 | 1.0E+15 | 1.0E+15 | ohms·m | IEC 62631-3-1 |
| 介電強度(0.800mm) | 33 | -- | kV/mm | IEC 60243-1 |
| 相對電容率(100Hz) | 3.60 | 4.00 | IEC 62631-2-1 | |
| 耗散因數(100Hz) | 0.020 | 0.060 | IEC 62631-2-1 | |
| 漏電起痕指數(解決方案A) | 600 | -- | V | IEC 60112 |
| 可燃性 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| UL 阻燃等級 | ||||
| 0.8 mm | V-0 | -- | UL94,IEC 60695-11-10,-20 | |
| 3.2 mm | V-0 | -- | UL94,IEC 60695-11-10,-20 | |
| 0.40 mm | V-0 | -- | IEC 60695-11-10,-20 | |
| 1.6 mm | V-0 | -- | IEC 60695-11-10,-20 | |
| 灼熱絲易燃指數 | IEC 60695-2-12 | |||
| 0.8 mm | 960 | -- | ℃ | |
| 1.6 mm | 960 | -- | ℃ | |
| 3.2 mm | 960 | -- | ℃ | |
| 熱燈絲點火溫度 | IEC 60695-2-13 | |||
| 0.8 mm | 750 | -- | ℃ | |
| 1.6 mm | 650 | -- | ℃ | |
| 極限氧指數 | 33 | -- | % | ISO 4589-2 |
| 補充信息 | 干燥 | 調節后的 | 單位制 | 測試方法 |
| European Railways Certifications | EN 45545-2 | |||
| R22 | HL2 | -- | ||
| R23 | HL3 | -- | ||
| 注射 | 干燥 | 單位制 | ||
| 干燥溫度 | 80 | ℃ | ||
| 建議的最大水分含量 | 0.20 | % | ||
| 料筒后部溫度 | 245 到 250 | ℃ | ||
| 料筒中部溫度 | 250 到 255 | ℃ | ||
| 料筒前部溫度 | 250 到 260 | ℃ | ||
| 模具溫度 | 60 到 80 | ℃ | ||
| 注射說明 The material is supplied in airtight bags,ready for use. In case that the virgin material has absorbed moisture,it must be dried with a dehumidified air drying equipment,dew point mini -20℃. Recommended time 2-4h Injection Advice: All reinforced,flame retardant compounds generate some level of abrasion/corrosion to the steel processing equipment. These issues may be magnified by using incorrect processing conditions (temperatures,residence time,moisture level ...) during the moulding process. Therefore,BASF SE recommends you adhere to the processing conditions detailed in this technical data sheet. For equipment that comes into contact with molten flame retardant compounds,BASF SE advises you to use a steel with high chromium and high carbon content (having a minimum concentration of 16% Chromium) to prevent corrosion and abrasion. For the correct reference of steel associated to flame retardant compounds' processing,please refer to your equipment manufacturers. In the case of high requirements on surface quality a mould temperature of up to 120℃ can be considered. The processing parameters like processing temperatures are a recommendation and can be adjusted in function of injection machine size,part geometry/design. |
||||
